Ogden Control Panels

Ogden Control Panel TC4466
The TC-4466 and TC-4468 Contactor Control Panels combine an advanced technology ETR Temperature Control and ETR-3 or ETR-9040 FM® Approved Limit in a corrosion resistant NEMA 4X Fiberglass enclosure or NEMA 4/12 steel enclosure. Select from a 30, 75 or 90 amp resistive load magnetic contactor. The panel is completely assembled, pre-wired and ready for installation.





Ogden TC4214The TC-4214 and TC-4224 Solid State Relay Control Panels combine an advanced technology ETR Temperature Control and ETR-3 or ETR-9040 FM® Approved Limit in a NEMA 4/12 enclosure. The fast cycling and electronic switching provided by Solid State Relays can extend the life of electric heaters. Element temperatures are typically more stable. Depending on the process, control is often more accurate than with mechanical devices. Amperage ratings vary based on ambient temperatures. The panel is completely assembled, pre-wired and ready for installation.




ETRB Nema 4X ETRB non-metallic enclosures are available without controls for assembly or modification by the customer, or as a packaged control panel in a multitude of design combinations and specifications. The plastic, hinged transparent cover allows full view of the installed control while providing complete protection from the environment and easy access to control adjustments. ETRB enclosures can contain any ETR control and/or temperature protection device as per customer specification or Ogden design. Panels can contain solid state or mercury relays. The following combinations listed are only representative. Contact Ogden for other combinations.

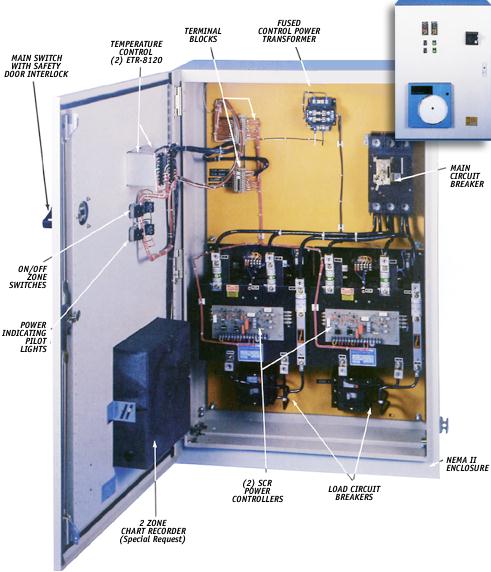

Ogden Two Zone Control Panel













   Two Zone Temperature
   Control Panel
